E-beam evaporation (electron beam PVD)
What is E-beam Evaporation?
E-beam evaporation (also called electron beam evaporation, e-beam deposition, ebeam deposition or e-beam PVD) is a physical vapour deposition process in which a focused electron beam heats a source material in high vacuum until it evaporates and condenses as a thin film on a substrate.
A focused electron beam heats a source material above its boiling or sublimation point, causing it to vaporise within a high-vacuum environment. The resulting vapour travels through the chamber and condenses on the substrate, forming a thin film.
Because the electron beam can deliver high, localised heating directly to the source material, e-beam evaporation is well suited to refractory metals that require high temperatures to vaporise and to applications where high-purity, precisely controlled films are required.
How does e-beam evaporation work?

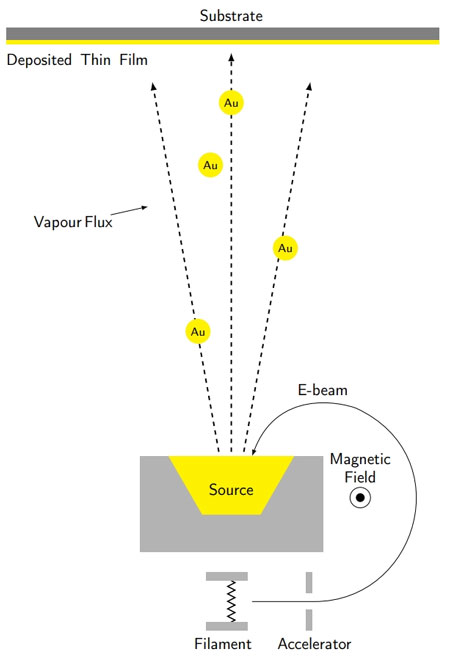

The process begins with the source material placed inside a water-cooled crucible. An electron gun generates a high-energy electron beam, which is accelerated and focused onto the surface of the source material. Magnetic fields are used to guide and sweep the beam across the material to provide controlled and uniform heating for consistent evaporation.
The concentrated energy of the electron beam heats the source locally, causing it to vaporise while the surrounding crucible remains comparatively cool. This direct heating of the source material reduces interaction between the material and the crucible, helping to minimise contamination and enabling the evaporation of materials that require very high temperatures.
Typical applications of e-beam deposition
Electron beam evaporation is used across semiconductor fabrication, optics, and advanced materials research where precise, high-purity thin film deposition is required.
Semiconductor fabrication
The process is widely used for depositing metal contacts, gate electrodes, and barrier layers on silicon wafers. Its excellent directionality makes it the standard method for lift-off patterning in MEMS and microelectronics — the evaporated flux has minimal sidewall coverage, allowing clean resist removal after deposition.
Optical coatings
High-quality anti-reflection coatings, mirrors, and bandpass filters are produced by depositing alternating layers of high- and low-refractive-index materials such as TiO₂ and SiO₂. The low defect density achievable with e-beam evaporation is critical for optical performance.
Research and advanced materials
Universities and research institutes use e-beam evaporation to develop novel thin film materials, explore surface functionalisation, and fabricate prototype devices. The process is compatible with a wide range of substrates, including wafers, glass, ceramics, and polymer films.
Key advantages of e-beam evaporation
E-beam evaporation offers several benefits over conventional thermal evaporation:
- Higher energy input – Compared with resistive thermal evaporation, the higher energy input gives denser films with better adhesion.
- Lower crucible contamination – Only the source material is heated, keeping the crucible cool and reducing unwanted contamination in the deposited film.
- Excellent directionality – The evaporated material follows a well-defined flux path, minimising sidewall coverage. This makes e-beam evaporation the preferred method for lift-off processes.
- Multi-material deposition – Using a multiple-crucible e-beam gun, several different materials can be deposited in sequence without breaking vacuum.
Compatible materials for e-beam evaporation
E-beam evaporation supports a wide range of metals, oxides, and dielectrics — including materials with high melting points that cannot be processed by thermal evaporation.
Metals and alloys Gold (Au), platinum (Pt), titanium (Ti), aluminium (Al), chromium (Cr), nickel (Ni), and copper (Cu) are among the most commonly deposited. The high energy density of the electron beam makes it suited to refractory metals such as molybdenum (Mo).
Oxides and dielectrics Silicon dioxide (SiO₂), titanium dioxide (TiO₂), aluminium oxide (Al₂O₃), and indium tin oxide (ITO) can be deposited, often with reactive evaporation using oxygen as a process gas to achieve stoichiometric films.
Polyteknik E-Beam Evaporation Systems
For lift-off processes and high-throughput thin film deposition, consider the Flextura Evaporator Module which is available as a standalone system or integrated into a Flextura Cluster for high-volume production environments.
Frequently asked questions about e-beam evaporation
E-beam evaporation is a physical vapour deposition (PVD) process in which a focused electron beam heats a source material in high vacuum until it evaporates. The vapour travels in a straight line to the substrate and condenses as a thin film. It is used for high-purity metals, oxides and dielectrics.
Thermal evaporation heats the source resistively in a boat or filament, while e-beam evaporation heats only the surface of the source with an electron beam. This lets e-beam evaporation reach the higher temperatures needed for refractory metals and oxides.
E-beam evaporation is a thermal process, whereas sputtering knocks atoms from a target using ion bombardment. Evaporation typically offers higher deposition rates and a directional flux, which suits lift-off. Sputtering gives better step coverage and preserves alloy compositions more easily. The two are complementary, and the right choice depends on the material, the geometry and the film requirements.
The evaporated flux travels in a nearly straight line, so very little material reaches the resist sidewalls. Because no metal bridges the sidewalls, the solvent can reach the resist and the unwanted metal lifts away cleanly, leaving a crisp pattern. Sputtered flux is more omnidirectional and tends to coat the sidewalls, which makes lift-off difficult.
Common metals include gold, platinum, titanium, aluminium, chromium, nickel and copper. Refractory metals such as molybdenum can be evaporated, and tungsten is possible but demands very high beam power. Oxides and dielectrics such as SiO₂, TiO₂, Al₂O₃ and ITO are also deposited, often with oxygen as a reactive gas to reach the right stoichiometry. A multi-pocket source can deposit several materials in one run without breaking vacuum.
IBAD adds an ion source that bombards the growing film during e-beam evaporation. This densifies the coating and can improve its mechanical and optical properties, which is particularly useful for oxide and dielectric layers. In optical coatings, ion-assisted e-beam deposition is used for robust films with a high laser damage threshold and very low thermal shift. The Flextura Evaporator can combine e-beam, thermal and IBAD processes in one platform.
